Nudge-It

This is a very simple plugin to move, rotate, or scale an object by a small incremental amount when a button is clicked.

The reason for this plugin is straightforward. When creating a scene you often need to move an object to a precise position. Sometimes you need to move it, then rotate it, then go back to adjusting the position again, and so on until it’s right. You may find that you want to move the object (or rotate it, or even scale it) by such a small amount that you can’t drag it accurately with the mouse, so you resort to typing numbers into the coordinates manager, hoping that eventually you’ll hit on the right ones by trial and error.

What’s needed to avoid this tedious process is a means to nudge an object by a small amount repeatedly until it’s in the right place. Unfortunately Cinema doesn’t provide any way to do this. Although you can click the arrow controls or use the mouse scrollwheel in the coordinates manager, this only moves the object by one unit (i.e. 1 cm, 1 inch, or whatever units you use). This is no use if you want to move it several times by, say, 0.01 units until it fits into the correct location.

Nudge-It was written to overcome this problem. It doesn’t do anything fancy, and it only works with objects, not with points, or polygons. But it does work with any object, making it very easy to nudge a scene component into position.

Compatibility

Nudge-It is compatible with the following versions of Cinema 4D:

Cinema 4D version Compatible?
R14-R19 Yes
R20, R21 Yes, but requires the INSYDIUM Bridge plugin
S22 No
R23, S24 No - native version in preparation (Bridge plugin will not be required)

User interface

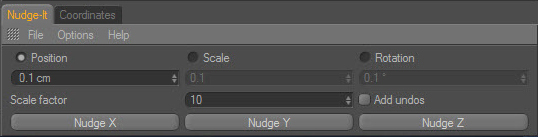

This is the simple dialog box which appears when you call Nudge-It from the plugins menu. The options and controls are explained in the PDF manual included in the archive. It can also be docked in the Cinema GUI, and then takes up no excess screen space:

Download

Download Nudge-It for R14-R19 and R20-R21 (if using the INSYDIUM Bridge)

Page last updated June 23rd 2021
